●The workpiece is added a turn little by little while it is holden by both centers, and read the graduation in dial gauge.
●Dial Gauge and Test Bar are not included as standard accessories. |
|
| Item Code |
Base Size Length x Width x Height (mm) |
Center Distance (mm) |
Center Height (mm) |
Parallelism of Center to Center (mm) |
Use Center |
Net Weight (kg) |
| No.1 |
750x115x130 |
400 |
150 |
0.005 |
MT-2 |
48 |
| No.2 |
1260x185x230 |
800 |
240 |
0.008 |
MT-2 |
150 |
| No.3 |
2000x220x300 |
1200 |
300 |
0.015 |
MT-3 |
370 |
|
|
|
|
|
●The workpiece is added a turn little by little while it is holden by both centers, and read the graduation in dial gauge.
●Dial Gauge and Test Bar are not included as standard accessories. |
|
| Item Code |
Base Size Length x Width x Height (mm) |
Center Distance (mm) |
Center Height (mm) |
Parallelism of Center to Center (mm) |
Use Center |
Net Weight (kg) |
| P-1 |
380x80x60 |
150 |
110 |
0.005 |
MT-1 |
14 |
| P-2 |
420x80x70 |
200 |
16 |
| P-3 |
530x80x88 |
300 |
20 |
|
|
|
| Bench Centers Lacslide Type |
|
|
| ●Dial Gauge Stand can be moved left or right using a rack attached handle,
it can be measured stability. |
|
| Item Code |
Base Size Length x Width x Height (mm) |
Center Distance (mm) |
Center Height (mm) |
Parallelism of Center to Center (mm) |
Use Center |
Net Weight (kg) |
| RB-1 |
750x115x130 |
400 |
150 |
0.005 |
MT-2 |
60 |
|
|
|
| Bench Centers With V.Block Carbibe |
|
|
| ●Bench center can measure the workpiece without center hole, it can use for eccentricity and deflection of workpiece. |
|
| Item Code |
Base Size Length x Width x Height (mm) |
Maximum Length between V blocks head (mm) |
V Groove Parallelism (mm) |
Size of Workpiece (mm) |
Net Weight (kg) |
| PV-1 |
380x80x60 |
180 |
0.005 |
ø5〜ø40 |
11 |
| PV-2 |
420x80x70 |
230 |
13 |
| PV-3 |
530x80x88 |
330 |
15 |
|
|
|
|
|
| ●This is compact bench center with high accuracy, and it can be used longitudinally and cross direction. |
|
| Item Code |
Overall Length x Width x Height (mm) |
Center Distance (mm) |
Center Height (mm) |
Parallelism and Squareness degree of each surface (mm) |
From bottom to center (mm) |
Net Weight (kg) |
| H.V |
356x106x175 |
200 |
75 |
0.005 |
150 |
22 |
|
|
|
|
|
| ●Small bench center is suitable for measurement for small workpiece. |
|
| Item Code |
Overall Length x Width x Height (mm) |
Center Distance (mm) |
Center Height (mm) |
Accuracy (mm) |
From bottom to center (mm) |
Net Weight (kg) |
| KG-1 |
155x45x80 |
80 |
30 |
0.003 |
65 |
3 |
|
|
|
| Bench Center with Gear Measuring Attachment |
|
|
|
●This is example of P type bench center with gear measuring attachment.

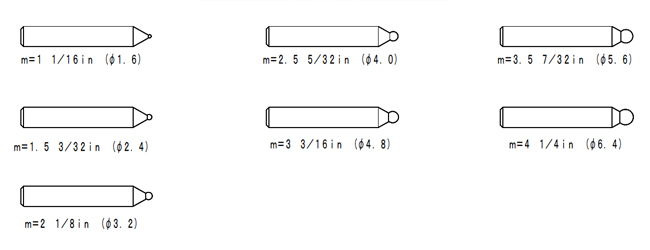

●7pcs. of contact points are attached. (Module 1 to 4)
 |
|
|
|
|
